Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver

Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver
Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver
Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver
Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver
Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver
Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver
Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver
Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver
Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver
Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver
Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver
Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver

Xtreme Performance Bolt (XPB) Carrier Group in NiB-X Silver

5.56 FULL AUTO BCG

    In stock Free shipping
    Same-day shipping and free shipping insurance included.
$229.99
Price in reward points: 7666
SKU: SRCXPBCG-NIBX
categories: AR15 Parts, All products, Bolt Carrier Groups (Full Auto)
MPI, HPT and Shot-Peened
Magnetic Particle Inspected, High Pressure Tested, and Shot Peened. Guaranteed to perform under pressure.
Limited Lifetime Warranty
Limited Lifetime Warrantyy

Description

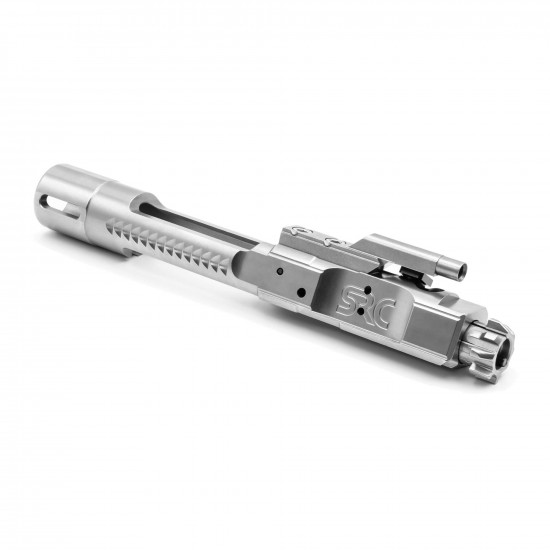

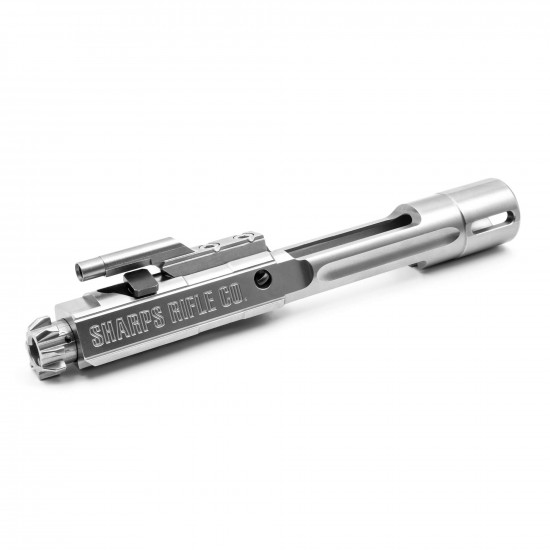

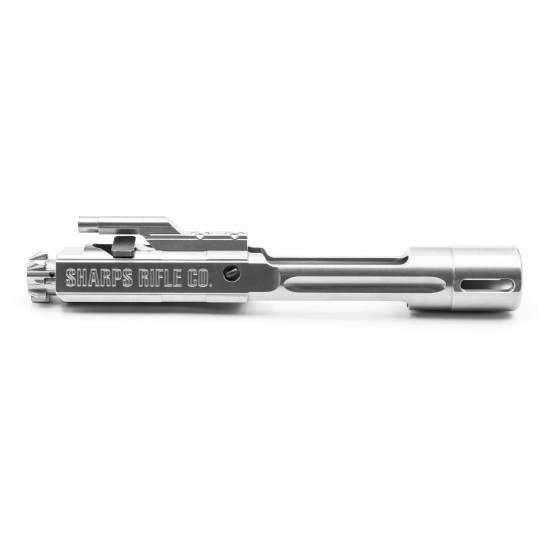

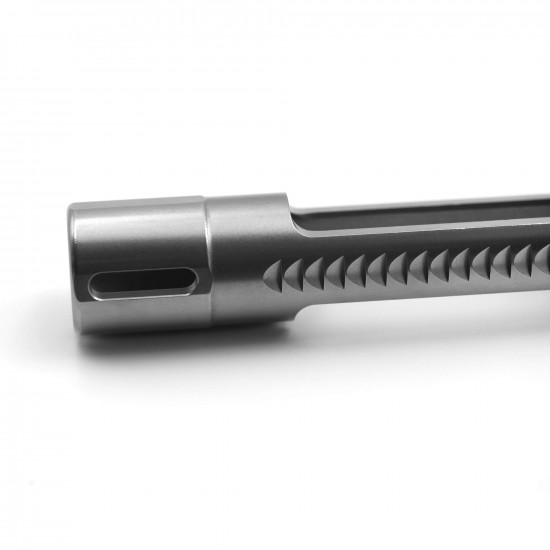

The Sharps Xtreme Performance Bolt (XPB) Balanced Carrier Group Complete is comprised of our patented Relia-Bolt™ and our Balanced Bolt Carrier. Both are machined out of S7 tool steel. The XPB undergoes a 24-hour thermal cycle proprietary heat treatment and is finished with NiB-X (Nickel Boron) Coating.

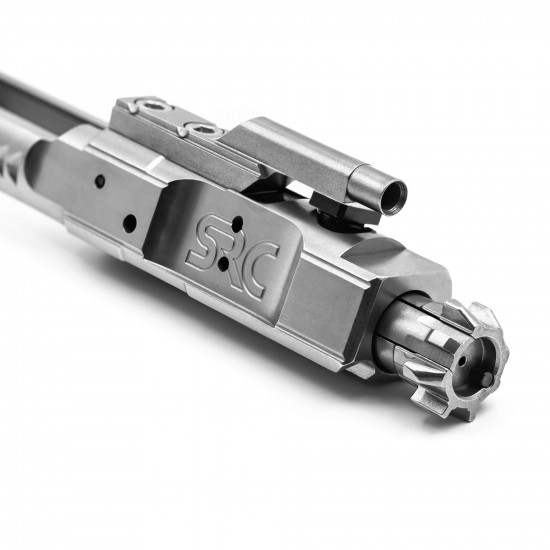

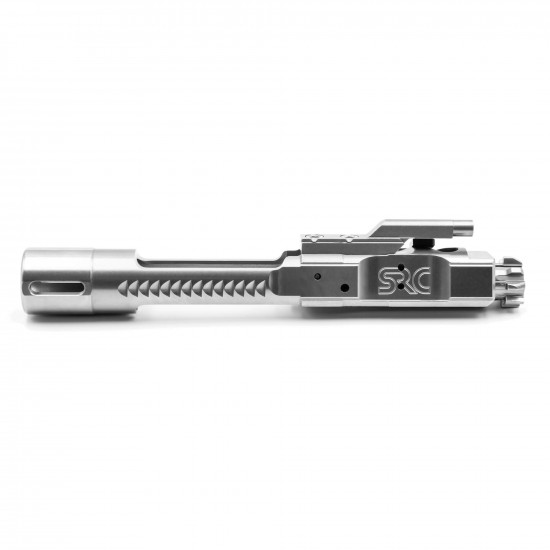

The XPB carrier displays the SRC logo machine cut and is visible when the ejection port door is open. The XPB fits standard AR-15/M16/M4 rifles chambered in .223/5.56, Sharps 25-45, and 300 Blackout calibers.


Technical Data

Bolt:
S7 Tool steel, shot peened NiB-X coated (U.S. Patent No. 9,863,729)
Bolt Carrier:
S7 Tool steel, shot peened and NiB-X coated
Gas Key:
4130 Steel, attached with Grade 8 hardware, properly staked and NiB-X Coated
Cam Pin:
4340 Steel, Manganese Phosphate coated
Firing Pin:
Mil Spec firing pin made of 8740 steel, center‐less ground and Hard Chrome coated
Extractor:
4340 Steel, NiB-X coated
Ejector:
S7, shot peened and Manganese Phosphate coated
Extractor Pin:
S7, shot peened and Manganese Phosphate coated


Why S7 Tool Steel?

S7 has excellent shock absorbing properties which provide superior impact resistance when being utilized in the construction of Sharps Bolt Carrier Groups. S7 demonstrates high strength and toughness as well as a resistance to softening at moderately high temperatures, i.e. operating temperatures not exceeding 1000°F.


The properties we as shooters look for in an AR platform BCG, are hardness and wear resistance.  S7 provides such attributes when heat-treated properly. Sharps has found that the key benefits from S7 tool steel are higher tensile strength and toughness which translate to longevity of use, i.e., a higher number of cycles the bolt can handle before it fails.



  • Mil-Spec Ejector Springs, Firing Pin Retaining Pin, Gas Rings
  • Batch MPI and HPT tested
  • Tensile strengths of 1550-1600 mpa, or 220,000-235,000 psi.
  • Toughness of over 200 ft./lb.
  • Charpy C-Notch HRC of 46 yields a 15% increase in hardness at the same toughness comparing to Carpenter 158 & 9310



NiB-X Coating

Specifically engineered NiB-X nickel boron coating to provide long life, high reliability and easy cleaning and maintenance. The BCG components are coated and polished to reduce fouling adherence.  Especially beneficial in short barrel setups and suppressed platforms.



Hardness HV 0.05:

HRC 70+

Friction vs Dry Steel:

0.1

Color:

Hyper Silver (Polished)



Limited Lifetime Warranty

If any SRC Bolt Carrier or Relia-Bolt™ is found to have manufacturer defects, SRC will repair or replace it at no charge. Manufacturer defects include out of spec parts and defective parts.  Although our BCG is Mil-Spec, there are so many variables, sometimes a little troubleshooting, or fine tuning of parts may be required for proper functionality.  Before a part is replaced or refunded, SRC reserves the right to inspect and test part(s) in question to determine if it is defective. Please keep in mind that altering the product renders the warranty void.

MPI, HPT and Shot-Peened
Magnetic Particle Inspected, High Pressure Tested, and Shot Peened. Guaranteed to perform under pressure.
Limited Lifetime Warranty
If any SRC Bolt Carrier or Relia-Bolt is found to have manufacturer defects, SRC will repair or replace it at no charge.
