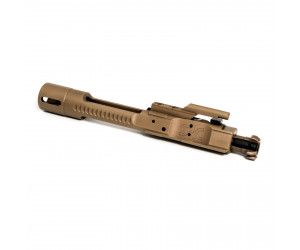

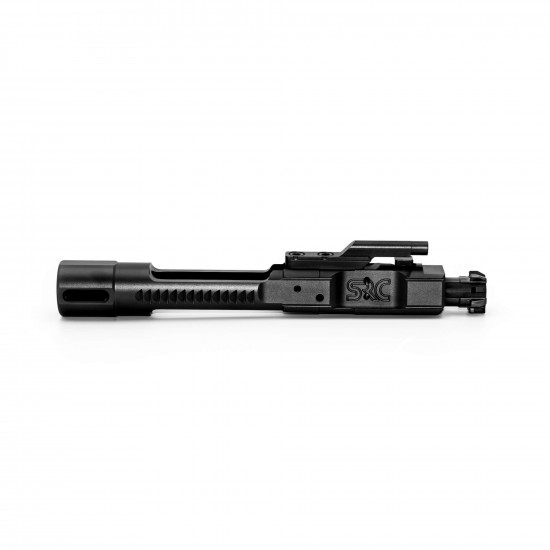

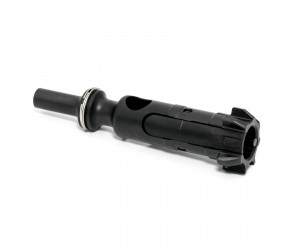

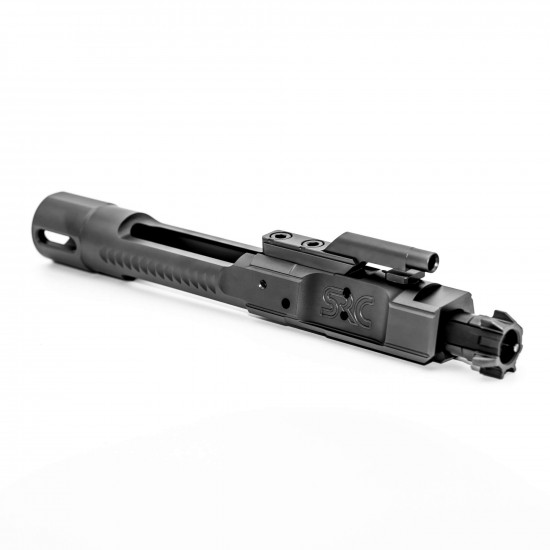

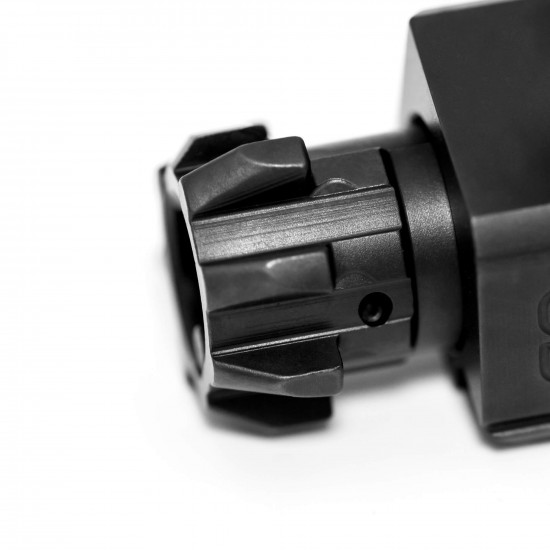

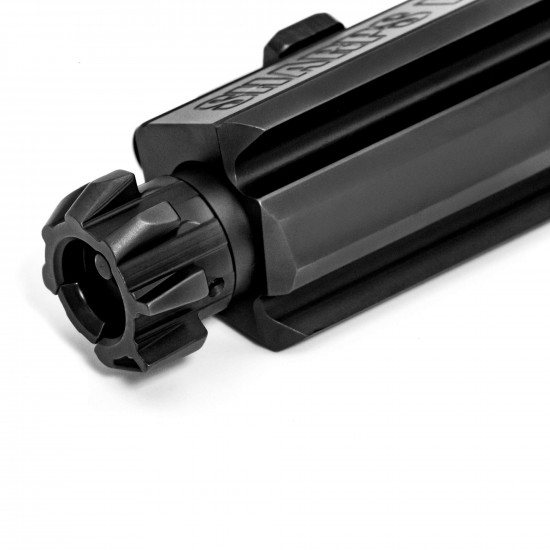

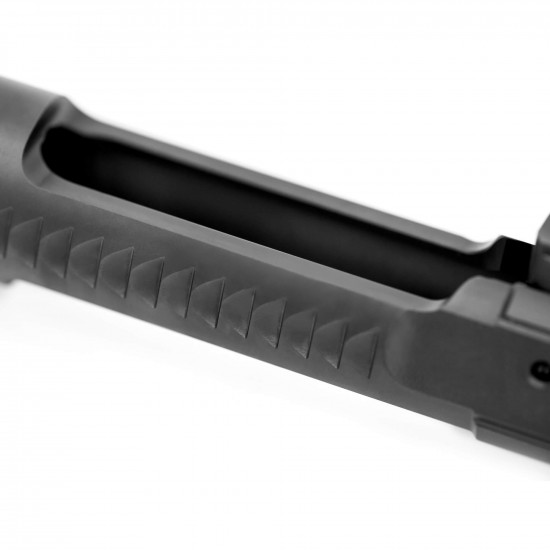

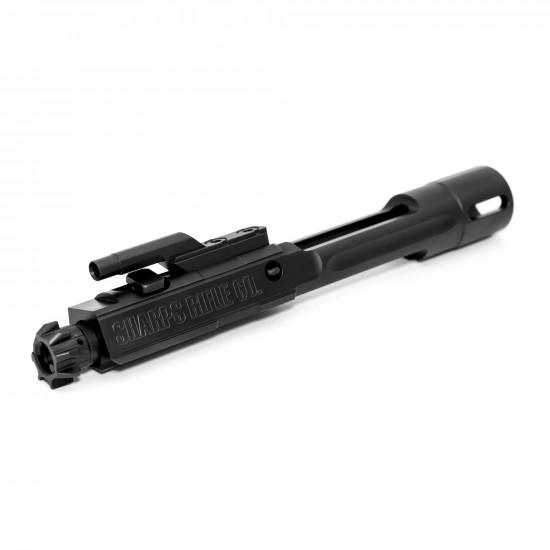

The Sharps Xtreme Performance Bolt (XPB) Carrier Group Complete is comprised of our patented Relia-Bolt™ and our Balanced Bolt Carrier. Both are machined out of S7 tool steel. The XPB undergoes a 24-hour thermal cycle proprietary heat treatment and is finished with DLC (Diamond-Like Carbon) coating.

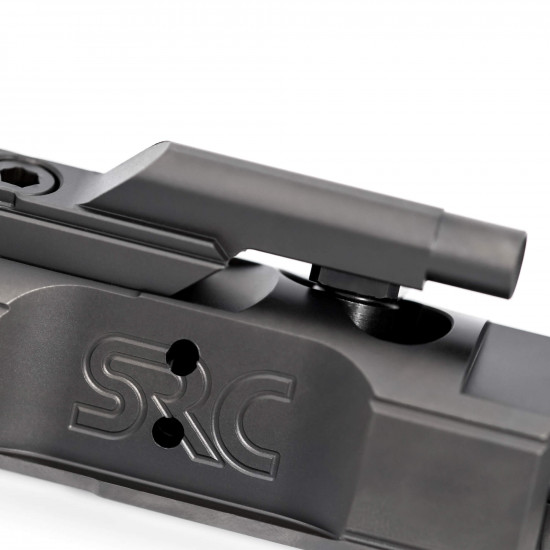

The XPB fits standard AR-15/M16/M4 rifles chambered in .223/5.56, Sharps 25-45, and 300 Blackout calibers. The XPB carrier displays the SRC logo machine cut and is visible when the ejection port door is open.
|Bolt and carrier||S7 tool steel, shot peened and DLC coated (U.S. Patent No. 9,863,729)|
|Gas key||4130 Steel. attached with Grade 8 hardware, properly staked and DLC coated.|
|Cam pin||4340 Steel, Manganese Phosphate coated|
|Firing pin||Mil spec made of 8740 Steel, center-less ground, and Hard Chrome coated.|
|Extractor||4340 Steel, Manganese Phosphate coated|
|Ejector||S7, shot peened and Manganese Phosphate coated|
|Extractor pin||S7, shot peened and Manganese Phosphate coated|
Technical Data on DLC Coating
|Coating thickness||2-4 Microns|
|Hardness HV 0.05||HRC 80 +|
|Deposition method||PVD UBM/PACVD|
|Friction vs Steel||Dry 0.1|
- MPI and HPT tested
- Tensile strengths of 1550-1600 mpa, or 220,000-235,000 psi.
- Toughness of over 200 ft./lb. Charpy C-Notch
- HRC of 46 yields a 15% increase in hardness at the same toughness comparing to Carpenter 158 & 9310
- Mil-Spec Extractor and Ejector Springs, Gas Rings
Limited Lifetime Warranty
If any SRC Bolt Carrier or Relia-Bolt™ is found to have manufacturer defects, SRC will repair or replace it at no charge. Manufacturer defects include out of spec parts and defective parts. Although our BCG is Mil-Spec, there are so many variables, sometimes a little troubleshooting, or fine tuning of parts may be required for proper functionality. Before a part is replaced or refunded, SRC reserves the right to inspect and test part(s) in question to determine if it is defective. Please keep in mind that altering the product renders the warranty void.
